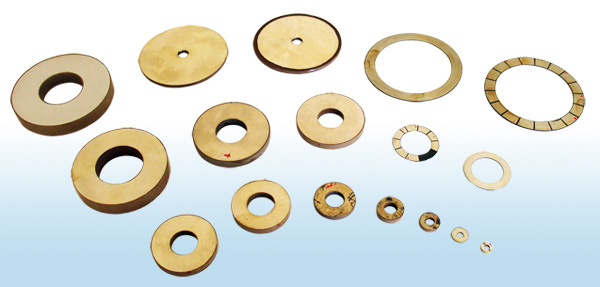

Piezoceramic wafers for ultrasonic cleaning machines

Pbulish：admin　　time：2008年03Month21Day

型号及规格	外型尺寸(mm)　外圆/内孔×厚度	主要技术特性
型号及规格	外型尺寸(mm)　外圆/内孔×厚度	fr(MHz)	Kr	C(pF)	Zr(Ω)
HF-32/11A	φ32/φ11×5	44	0.42	1300±12.5%	≤20
HF-35/16A	φ35/φ16×5	44	0.42	1450±12.5%	≤18
HF-38/16A	φ38/φ16×5	42	0.42	1650±12.5%	≤15
HF-38/16B	φ38/φ16×5	42	0.42	2100±12.5%	≤15
HF-45/17A	φ45/φ17×5	38	0.42	2450±12.5%	≤11
HF-45/17B	φ45/φ17×6	38	0.42	2050±12.5%	≤13
HF-50/17A	φ50/φ17×5	35	0.42		≤20
HF-50/20B	φ50/φ20×5		0.42	2550±12.5%	≤11
